Narrow Lot Style House Plan 63173

Specifications

Total Living Area:	1170 sq ft
Main Living Area:	820 sq ft
Upper Living Area:	350 sq ft
Garage Area:	240 sq ft
Garage Type:	Detached
Garage Bays:	1
Foundation Types:	Slab
Exterior Walls:	Concrete
House Width:	29'4
House Depth:	33'
Number of Stories:	2
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	21' from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Truss
Porch:	195 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

Pricing

• PDF Study Set: $500.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $850.00
• 5 Sets: $1,050.00
• 5 Sets plus PDF File: $1,200.00
• CAD File: $1,700.00
  Single Build License issued on CAD File orders.
• Additional Sets: $50.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

A. Cover sheet with front renderings and general notes.

B. Foundation plan (Slab standard) 1/4"=1'0", Other foundations may be available as an option. Call for availability and/or modification quotation.

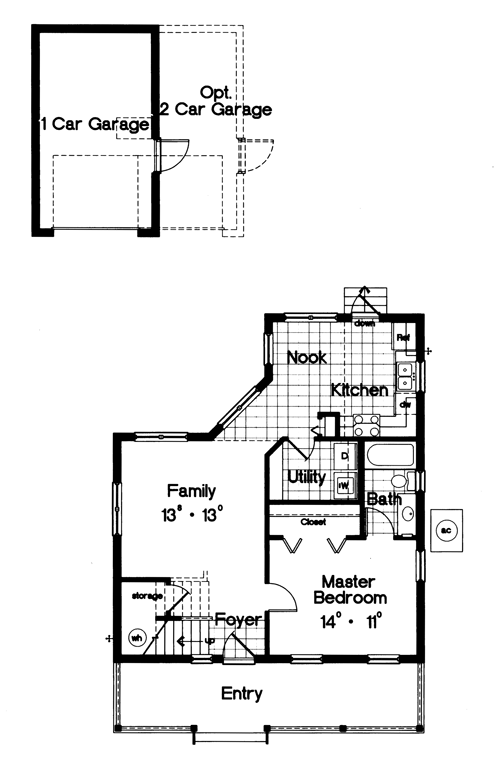

C. Floor plans for each floor including all dimensions, 1/4" = 1'0".

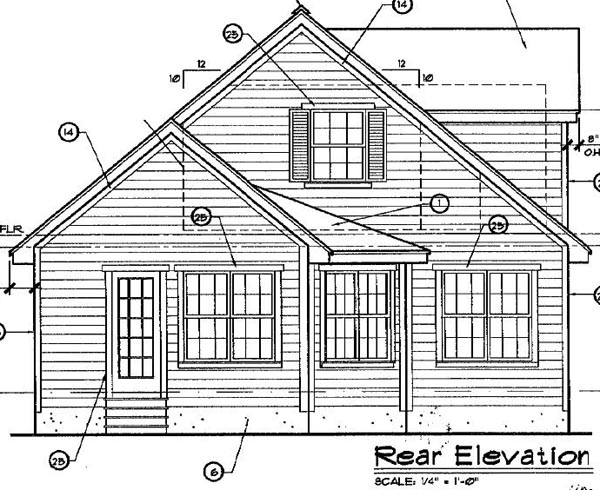

D. All 4 Elevations, front (1/4" = 1'0"), rear and sides (1/8" or 1/4" = 1'0").

E. Building Section.

F. Detail Sheets.

G. Roof Plan (does not include truss layout and profiles which are determined in area of construction.)

H. Electrical plans of each floor. (Outlet, switch and fixture layout only)

Note: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include much detail on heating, plumbing, and electrical work on your plans. The ductwork, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) you use. The details and specifications are easily obtained from your builder, contractor, and/or local suppliers

Want to make changes?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

QUICK-Cost-To-Build Estimate

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
