Ranch Style House Plan 72967

Specifications

Total Living Area:	3145 sq ft
Main Living Area:	3145 sq ft
Unfinished Basement Area:	3117 sq ft
Garage Area:	1736 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement Crawlspace - * $335.00 Slab - * $335.00
Exterior Walls:	2x6
House Width:	114'10
House Depth:	70'
Number of Stories:	1
Bedrooms:	2
Full Baths:	2
3/4 Baths:	1
Max Ridge Height:	30' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	47 psf
Roof Framing:	Truss
Porch:	588 sq ft
Deck:	289 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Pricing

• PDF File: $1,466.00
• 5 Sets: $1,167.00
• 8 Sets: $1,215.00
• Reproducible Set: $1,466.00
• CAD File: $2,335.00
  Single Build License issued on CAD File orders.
• Right Reading (True) Reverse: $375.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $80.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $335.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $335.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

Cover sheet with Front Rendering.

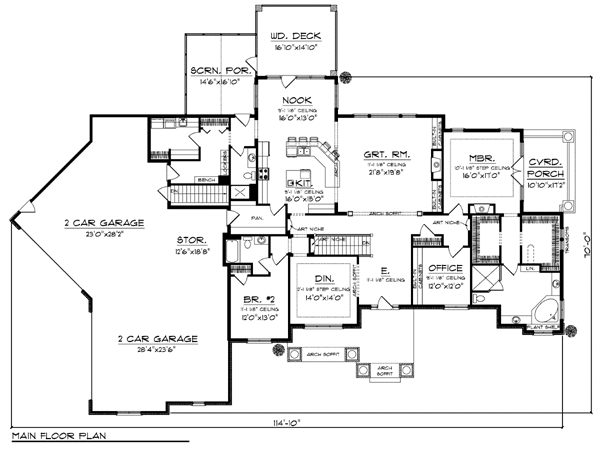

Foundation and Floor Plans at 1/4" = 1'0" scale.

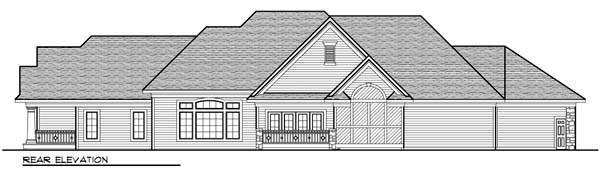

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.

Building Sections and Details as required to construct the individual design.

Interior Elevations of Cabinets at 1/4" = 1'0" scale.

Roof Plans

Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.

General Specifications design notes.

Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.

Want to make changes?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

What will it cost to build your new home?
Let us help you find out!

• COOLhouseplans.com has partnered with Home-Cost.com to provide you the most accurate, interactive online estimator available. Home-Cost.com is a proven leader in residential cost estimating software for over 20 years.
• No Risk Offer: Order your Home-Cost Estimate now for just $29.95! We will provide you with a discount code in your receipt for when you decide to order any plan on our website than will more than pay you back for ordering an estimate.

Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.

With your 30-day online cost-to-build estimate you can start enjoying these benefits today.

• INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
• RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
• INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
• REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
• PEACE OF MIND: Take the financial guesswork out of building your dream home.
• DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
• EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.

View Sample Report
View Feature List

Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:

• Accurate cost database of 43,000 zip codes (US & Canada)
• Print cost reports or export to Excel®
• General Contractor or Owner-Builder contracting
• Estimate 1, 1½, 2 and 3-story home designs
• Slab, crawlspace, basement or walkout basement
• Foundation depth / excavation costs based on zip code
• Cost impact of bonus rooms and open-to-below space
• Pitched roof or flat roof homes
• Drive-under and attached garages
• Garage living – accessory dwelling unit (ADU) homes
• Duplex multi-family homes
• Barndominium / Farmdominium homes
• RV grages and Barndos with oversized overhead doors
• Costs adjust based on ceiling height of home or garage
• Exterior wall options: wood, metal stud, block
• Roofing options: asphalt, metal, wood, tile, slate
• Siding options: vinyl, cement fiber, stucco, brick, metal
• Appliances range from economy to commercial grade
• Multiple kitchen & bath counter / cabinet selections
• Countertop options range from laminate to stone
• HVAC, fireplace, plumbing and electrical systems
• Fire suppression / sprinkler system
• Elevators





Common Questions:

Got a question about this plan? Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
