Basement
: $555.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Exterior Elevations
In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s)
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Roof Plan
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK-Cost-To-Build Estimate
No Risk Offer: Order the QUICK-Cost-To-Build now and when you do decide to order any house plan, $24.95 will be deducted from your order! *
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q:What size are the plan pages and how many pages are in the set?
A:this plan has 8 drawing sheets and 2 general note sheets. The page size is 24 x 36.
Q:What is the distance from the sink on the Kitchen Island to the stove on the counter on the right side of the Kitchen?
A:The drawings show the distance between the sink and the stove is 4 feet. But it can be what ever the home owner and builder decide. If a lot of cooks in the kitchen they may want a bit more space. etc.
Hope that helps.
Q:Is the roof an EPDM rubber roof?
A:Hi
Yes that is exactly what is called out.
On the roof plan it says "Waterproof membrane"..
Cheers!
Dm
Q:What type of materials are used on the outside to make it look like this?
A:Hi
The material called out on the plans for the siding is: lap siding and the pillars are"Thin-Set" stone veneer.
Cheers!
Dm
Q:Thank you very much for the information and plans you sent. I have another question --- This property is going to be built in the snow area. Do you think this home would lend itself to a sloped roof modification considering where it will be built?
A:Hello
I did talk to a designer and they suggest not to use this plan if you're building in a high snow area. Option 1240B would be better.
Cheers!
Dm
Q:Hello - I need to know the total area of the roof line, to make sure the total covered area does not exceed 3600/sf. Can you confirm? Thank you.
A:The under roof sq footage is 3903 sq. feet for plan 1240..
Q:Can you please tell me what size lot would be needed for this home?

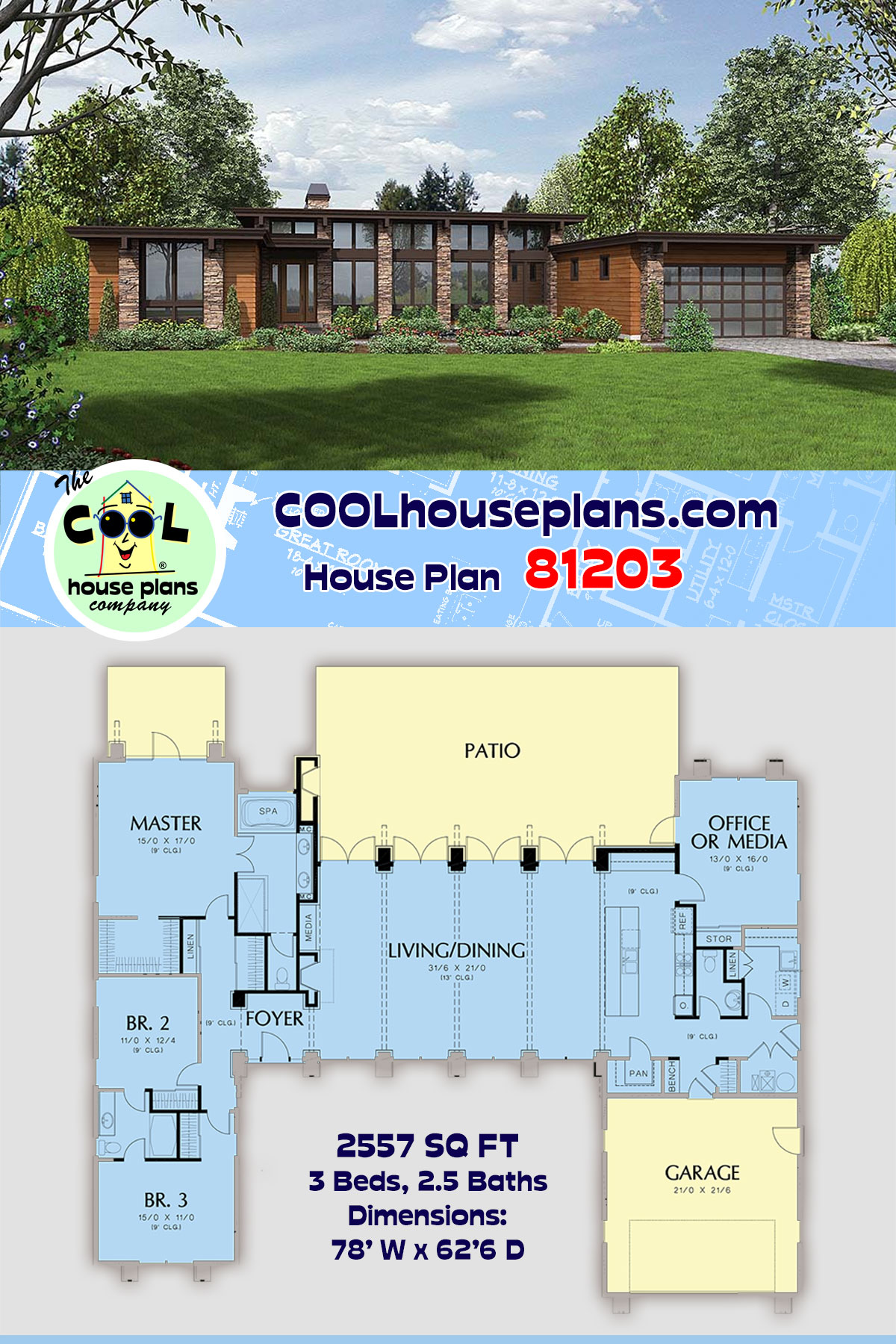

A:This home is 78' Wide and 60' 6" Deep. You will need to figure out if it will fit on your lot based on those dimensions.
Q:Does this roof have a slight pitch or is it completely flat? Thank you! Mary Ann
A:The roof pitch is 1/12.
Q:What time of roofing works best with this house?
A:The roofing for this house is a waterproof membrane type roofing system.
Q:Good morning, what is the roof pitch? Also could you please clarify which the direction the pitch runs? From the renderings it appears the left and right wings run high in the front and low at the back. Is the main roof plane the same or the reverse? Great plan!
A:Hello -
The roof pitch on plan 81203 is 1/12. Attached is a screenshot of the roof page that shows the direction of the roof slope.
Q:PDF File for $1,465 does not allow you to import into CAD and make changes...correct?
A:You are correct. You would need to purchase the CAD drawings to be able to make changes.
Q:What is the height of the doors going out to the patio? What is the size of the windows above and doors and the overall height from roof to patio?
A:The patio doors are 8' tall. The transom windows above the door are 3' X 4'. The patio height is 13'.
Q:What is the snow load calculation for this design. I live in zip code 64152 and want to be sure it will work there. Thank you.
A:ALL of our plans are 25lb roof snow load. The customer will need to ask their building department if that meets their requirements.
Q:Thank you for the quick reply to my question. I’m not clear, though, as I meant to ask if the exterior walls are poured concrete. Could you please clarify? Thanks!
A:Our plans do not use ICF. The walls are wood framed.
Q:I am in the Hvac business and am very interested in building this house in the Tampa,. Florida area. I was wondering if there are accommodations for the Hvac ductwork or is this something I would have to design/build? Beautiful design and I am in the purchasing stage for the lot and will be on to permitting soon. I am thinking maybe February to break ground. Thanks for your time and response.
A:To Whom It May Concern,
Thank you for your interest in this plan.The house is designed on a crawlspace foundation and ducting is intended to run through the crawlspace.
Sincerely,
Karen
Common Questions:
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
