Craftsman European

Plan Number 82230

Order Code: C101

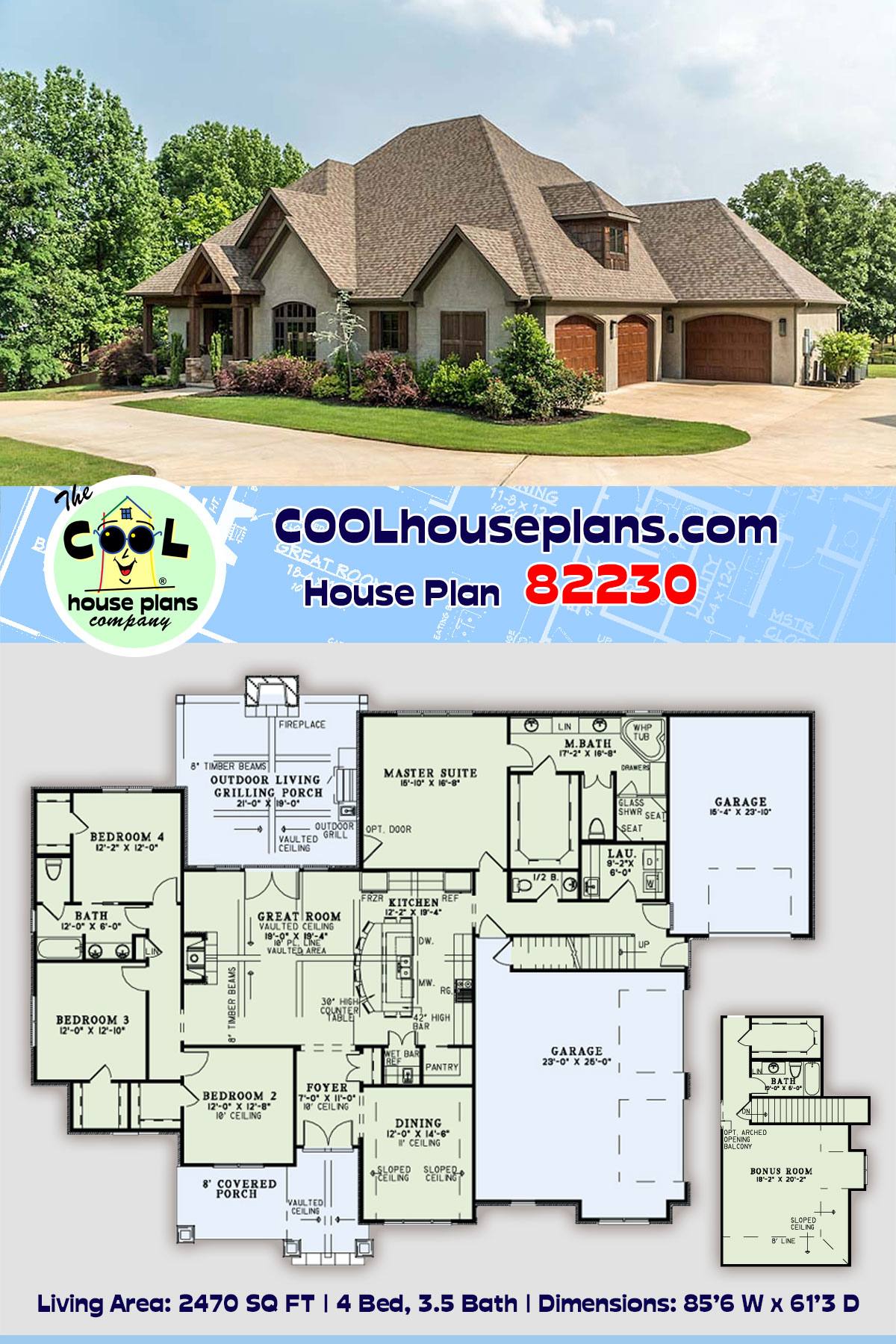

European Style House Plan 82230

2470 Sq Ft, 4 Bedrooms, 3 Full Baths, 1 Half Baths, 3 Car Garage

Thumbnails: ON | OFF
Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Elevation Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage First Level Plan Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Second Level Plan Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Rear Elevation Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 1 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 2 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 3 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 4 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 5 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 6 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 7 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 8 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 9 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 10 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 11 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 12 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 13 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 14 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 15 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 16 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 17 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 18 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 19 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 20 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 21 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 22 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 23 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 24 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 25 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 26 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 27 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 28 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 29 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 30 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 31 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 32 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 33 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 34 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 35 Craftsman, European House Plan 82230 with 4 Beds, 4 Baths, 3 Car Garage Picture 36
Plan Description

European House Plan with Craftsman Flair

This rustic home blends brick, stone, shake siding, and timber columns for a striking exterior. The foyer leads you to the Great Room with its vaulted ceiling and fireplace. The perfect area for entertaining, your guests will enjoy the curved eat-at island bar of the kitchen. And open the French Doors of the Great Room to the Outdoor Living/Grilling Porch with a cozy fireplace of its own. The Master Suite offers an optional door to the porch and a huge walk-in closet. The bathroom features double vanities, a corner whirlpool tub, and a corner glass shower with seats to ensure relaxation. On the other side of the house, you’ll find bedrooms 2, 3, and 4, each with a walk-in closet and sharing a bathroom. Upstairs there is a huge bonus room that would be perfect for another bedroom, with a full bathroom, and a large walk-in closet.

Quick Specs
2470 Total Living Area
2470 Main Level
602 Bonus Area
4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
85'6 W x 61'3 D
Quick Pricing
PDF File: $1,550.00
5 Sets: $1,650.00
CAD File: $3,100.00

Add to cart  Bookmark Plan View Saved Plans Tell A Friend Ask A Question
Plan Specifications

Specifications

Total Living Area: 2470 sq ft
Main Living Area: 2470 sq ft
Bonus Area: 602 sq ft
Garage Area: 1069 sq ft
Garage Type: Attached
Garage Bays: 3
Foundation Types: Basement - * $299.00
Total Living Area may increase with Basement Foundation option.
Crawlspace
Slab
Walkout Basement - * $299.00
Total Living Area may increase with Basement Foundation option.
Exterior Walls: 2x4
2x6 - * $299.00
House Width: 85'6
House Depth: 61'3
Number of Stories: 1
Bedrooms: 4
Full Baths: 3
Half Baths: 1
Max Ridge Height: 33' from Front Door Floor Level
Primary Roof Pitch: 12:12
Roof Load: 45 psf
Roof Framing: Stick
Porch: 564 sq ft
Formal Dining Room: Yes
FirePlace: Yes
1st Floor Master: Yes
Main Ceiling Height: 9'
* May require additional drawing time.

Special Features:

  • Bonus Room
  • Brick or Stone Veneer
  • Front Porch
  • Outdoor Fireplace
  • Outdoor Kitchen
  • Rear Porch
  • Wet Bar
Plan Package Pricing

Pricing

  • PDF File: $1,550.00
  • 5 Sets of Same Plan: $1,650.00
  • CAD File: $3,100.00
  • Right Reading (True) Reverse: $199.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $75.00
Orders placed with overnight/2-day shipping may be delayed by two business days due to a review process.

Available Foundation Types:

  • Basement : $299.00
    Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
  • Crawlspace : No Additional Fee
  • Slab : No Additional Fee
  • Walkout Basement : $299.00
    Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.

Available Exterior Wall Types:

  • 2x4: No Additional Fee
  • 2x6: $299.00
    (Please call for drawing time.)
Add to cart
What's Included?

What is Included in this House Plan?

FOUNDATION PLAN Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.

FLOOR PLANS Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout (not available for log homes).

SET OF ELEVATIONS All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.

MISCELLANEOUS DETAILS These are included for many interior and exterior conditions that require more specific information for their construction.

ROOF OVERVIEW PLAN This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ROOF OVERVIEW PLAN This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

SCHEMATIC ELECTRICAL LAYOUT is included unless the plan employs exterior log wall construction.
Plan Modifications

Want to make changes?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

QUICK-Cost-To-Build Estimate

  • No Risk Offer: Order the QUICK-Cost-To-Build now and when you do decide to order any house plan, $19.95 will be deducted from your order! *
  • Get more accurate results, quicker! No need to wait for a reliable cost.
  • Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
  • Cost report for your zip code. (the zip code can be changed after you receive the online report)
  • Estimate 1, 1-1/2 or 2 story home plans. **
  • Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
  • Your estimate is active for 1 FULL YEAR!
View a Sample

View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.

Purchase Estimate

$19.95 per plan

** Available for U.S. only.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $19.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A

Previous Questions and Answers

Q: What does the basement layout look like and where does the HVAC ducting and furnace located in the Basement?

A: Thank you for your interest in our home plan. We do not have a floorplan layout for the basement on this plan, as it is not the standard foundation. If basement is chosen as an option, no floorplan is given. If a floorplan is needed, there would have to be a modification request sent in. We call for HVAC to be located in the attic for this plan, but when basement is chosen, the customer can send in modification request to ask for it to be locate din basement.

Date Posted: 28-Aug-20
Q: What are the measurements for the living room? Is it a vaulted ceiling or 10' ceiling?

A: Approximately 18’8” x 19’ are the interior dimensions of the great room. The ceilings are vaulted.

Date Posted: 17-Apr-20
Q: Hello. We are considering building Plan #82230. Our question is are the dimensions inside or outside wall measurements? For example the spare bedrooms measure roughly 12 x 12. Is that inside measurements? Thank you for your help.

A: Hello our dimensions are from inside stud to outside stud.

Date Posted: 17-Mar-20
Q: My wife and I love this plan; however, are doorways ADA accessible? Other changes would include 2 x 6 construction with a basement. Thanks.

A: Good morning, thank you for your interest in our home plan. Most interior doors are 28”. To have them changed to 3’ doors would be a modification request. Also, to get 2x6 exterior walls, would be a $250 conversion fee. If you wanted to add an unfinished basement, it would also be a $250 basement fee, for a finished basement (showing framed walls) would be a modification request. I hope this answers your questions, if not please let me know.

Date Posted: 06-May-19
Q: What are the dimensions of the kitchen island?

A: The length of the kitchen island is 9’-8” length and with bar 5’-10” in the center roughly. That is the dimension we show you need to get with the cabinet maker to see what can be done to suit your needs

Date Posted: 18-Mar-19
Q: Hi, I have lots of questions about this plan but I'll try to keep it down to a few :) Is the fireplace in the Great Room wood or gas? If the upstairs is not opted for, can the highest part of the roof above the 2 bay garage be lowered? Please explain the front facing window (?) of the 2 bay garage. Is there glass behind that wood? Is the exterior of the house, (stucco? cement?) more economical than the other option of wood? If no basement is wanted downstairs, could the single garage bay be used as a basement of sorts to keep storage and the mechanical stuff? No heat. A main level basement if you will. Older folk don't do so good with stairs, up or down. Is a metal roof okay or would it ruin the overall look? I've heard they last a lot longer. Thanks for now, Carol

A: Hi, I have lots of questions about this plan but I'll try to keep it down to a few :) Is the fireplace in the Great Room wood or gas? Gas If the upstairs is not opted for, can the highest part of the roof above the 2 bay garage be lowered? This would be a modification Please explain the front facing window (?) of the 2 bay garage. Is there glass behind that wood? Unsure which window you are referring too Is the exterior of the house, (stucco? cement?) more economical than the other option of wood? It is Brick If no basement is wanted downstairs, could the single garage bay be used as a basement of sorts to keep storage and the mechanical stuff? No heat. A main level basement if you will. Older folk don't do so good with stairs, up or down. This can be storage and mechanical Is a metal roof okay or would it ruin the overall look? I've heard they last a lot longer. Metal is fine to change to on-site Thanks for now, Carol

Date Posted: 10-Dec-18
Q: Do you have this plan with a kitchen nook for a table?

A: Hello, you might like 82430.

Date Posted: 18-Apr-18
Q: What are the dominations of the master closet?

A: Good morning!! The dimensions of the master closet are : 7’10” wide and 10’8” deep

Date Posted: 12-May-17
Q: Does this house plan have a walkout basement available? and can you send me a image of basement plans?

A: Hello and thanks for your inquiry – Yes an optional basement is available. It is an unfinished basement area under the main floor heated/cooled. The stair access is on the backside of the stairs going up.

Date Posted: 20-Mar-17
Q: Do the house plans spec the exterior materials?

A: Yes. The elevations call out the exterior materials.

Date Posted: 01-Feb-17
Q: Good Afternoon, Do you have this plan available where the two car side entry garage is a three car side entry so there would be a total of four garage spaces?

A: This is not currently an option available. However, we can certainly modify the plan to create what you want.

Date Posted: 11-Jan-17
Q: Hi, Can I have a drawing of the floor plan with some more dimensions in it? My lot is slopped suitable for a walk-out basement. Do you have a sketch of the walk-out basement for it? Plan 82230 Regards, Paul Pach

A: Good morning! We can’t provide full dimensions before a purchase because this would allow someone to build the plan. Also, the walk out basement provided is a foundation only. So, there is not a floor plan available. However, I am providing the basement stair location which is located off the garage.

View Attached File
Date Posted: 30-Dec-16
Q: Hi if I wanted all area to have a minimum 10' ceiling height could that be accomplished by just ensuring all top plates are framed with 10' studs? Or would the plan need reworked?

A: yes, simply use 10 walls as opposed to the 9 foot. many folks do this onsite. thanks for choosing our home design!

Date Posted: 09-Nov-16
Q: This is the house plan I will be building soon. I see that the great room is vaulted. Is there any way the kitchen, dinning room, and master bedroom be vaulted also? If not how tall are the ceilings in all the rooms or how tall could they be?

A: hello and thanks for choosing our design! the house is designed with a nine foot ceiling throughout EXCEPT where noted. this can be done but may be tricky depending on how seasoned a builder and/or framers you use for your new home. You must ask your builder.

Date Posted: 24-Oct-16

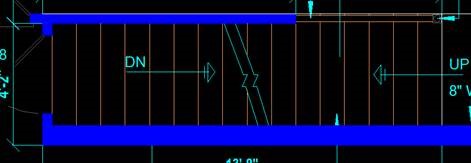

Q: Can you send me a pic of where and how basement stairs would fit into this plan? Thank you! Darren

A: Hello Darren – the basement access is on the opposite end of the stairs; if you want the stairs inside house simply move the garage to house door down.

Date Posted: 23-May-16
Q: Hi, I've read the questions and comments and I'm looking at the plan to try and determine the answer. When you said the basement entrance would be on the backside of the bonus room stairs, so would the single garage be moved to the back door of double garage?

A: I apologize I’m not sure I understand your question (long week) We can move the entry door downward or into garage some so the basement access door is In the heated/cooled area just off main hallway. I hope this makes sense
